Belt Conveyor Type Magnetic Separator

1.Product description

This product has the characteristic:

The magnetic field area is large and magnetic force is strong. The machne is durable. With simple structure, it is easy to operate, and no need for articles iron removal. It fits for granular material especially for iron limination of raw material of big grain with the range ffrom 0.1mm*0.1mm to 10mm*10mm. Moreover, it has low consumption, low fault rate, highyield and iron removal compeletely. We can make customiron removal wiuth single-layer, double-layer and multi-layer.

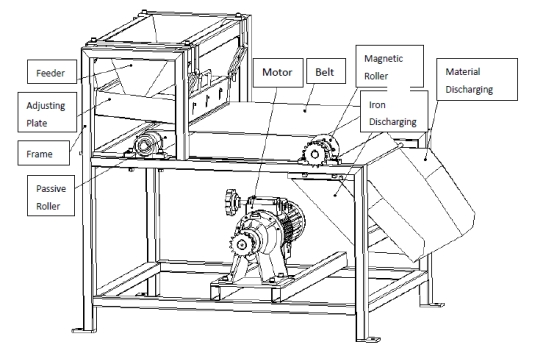

2.Operating Principle

Raw material enters from the feeding port and falls on the belt

Conveyed via belt to magnetic drum.

All iron-containing materials in the raw material are adsorbed by the magnetic roller.

As the belt rotates to the non-magnetic zone.

The iron-containing material will automatically fall into the iron box.

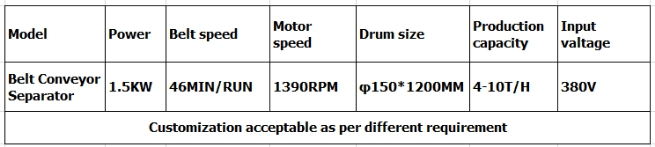

3.The Main Technical Parameters

4. Application Scope

Applicable for dry powder iron removal inceramic industry, like quartz sand, refractory of non-metallic materials and the iron removal scrap metal.

5. Product service commitment

1.The product is used under normal conditions, the warranty period is 5 years (excluding broken parts)

2. In the first year, spare parts caused by non-human factors were damaged and replaced free of charge. If the damage is caused by the violation of the operation, the cost of the spare parts will be recovered and labor costs.

3. From the second year onwards, the accessory fee will be charged, and the customer will be responsible for the travel expenses of the maintenance personal, free of labor costs.

4. Th product price is reasonable, delivery on time, fast. Regular return visits, no fee fro return visits.

5. If the equipment has problem during use, it can be repaired free of charge by phone or online. If customers need our technical to repair, in our own province, the technical will get to within 36 hours, if another province, then will arrive within 48 hours. As for the foreign country, the technical will arrives at the scene for a week or so to ensure the normal production of the maintenance personal, and assist the visa.
