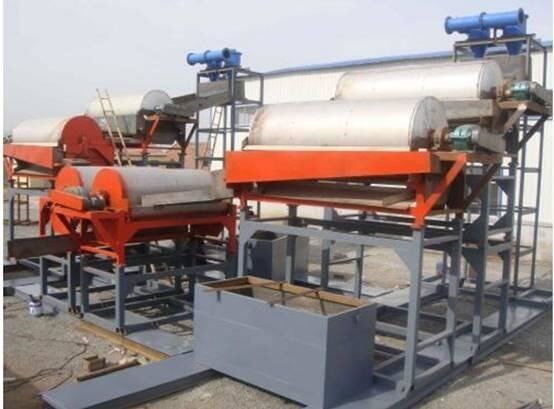

Permanent Magnetic Roller Separator

1.Product description

Permanent Magnetic Roller Magnetic Separator is mainly composed of racks, pm cylinders, gear, feeding, through, rinsing water equipment, magnetic equipment, such as main components supporting on magnetic suspension shaft fell directly on the rack, the axis, by means of the magnetic system adjustment can be adjusted, in a certain range of magnetic deflection agnle. Due to the large diameter Permanent Magnet Roller Magnetic Separator, smooth, uniform, smooth feeding and dsicharging separator with long flotation recovery effect. But due to the large diameter speed, more stable and reliable operation, low noise, easy maintenance.

2.Operating Principle

During operation, the pulp is fed into the sorting chamber of the sorting ring located in the magnetic field area of the core gap, where the mesh is magnetized, and the magnetic medium in the mesh box generates an uneven strong magnetic field, which can adsorb magnetic ore particles; non-magnetic The ore particles are not affected by the magnetic force, and the ore slurry flows back into the concentrate trough through the gap in the mesh box. The magnetic ore particles adsorbed by the magnetic field rotate with the ring and move to the top non-magnetic zone. The magnetic ore particles are washed out of the needle box and flowed into the tailings tank by high-pressure water washing at the top, and the sorting process is continuously circulated in sequence.

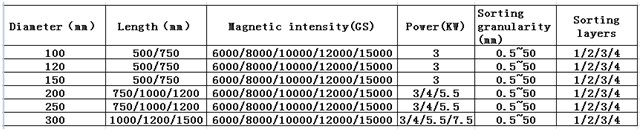

3.The Main Technical Parameters

4.Application Scope

Permanent Magnetic Separator magnetism strong magnetic minerals. As well as the removal of non-metallic minerals strongly magnetic minerals.
