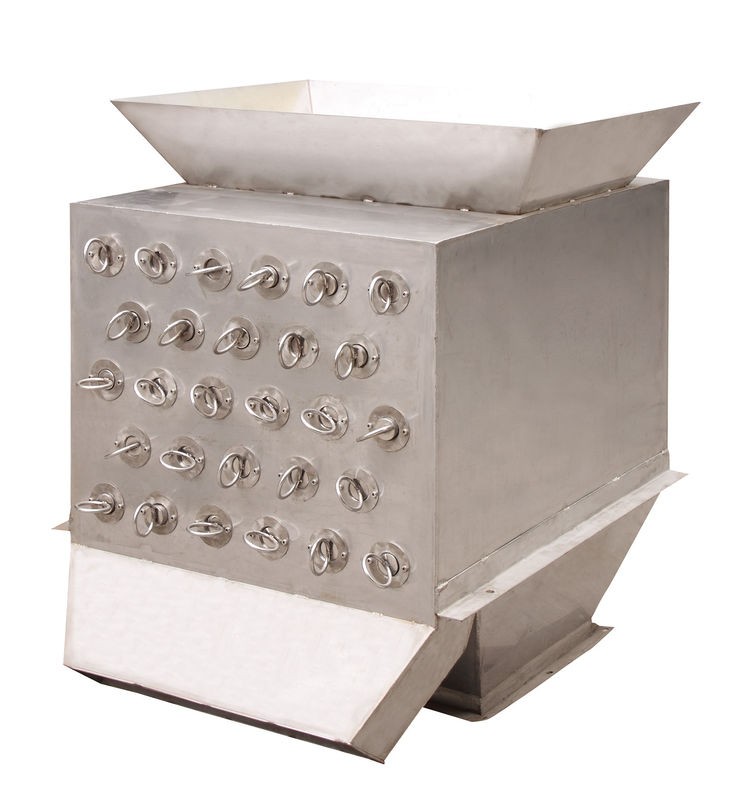

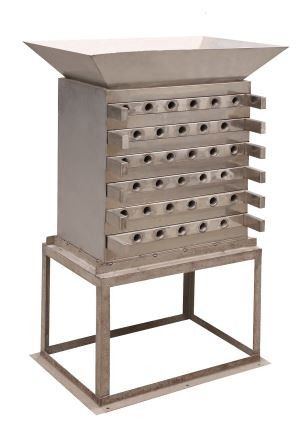

Magnetic Drawer Type Separator

1.Product description

The Magnetic Drawer Type Separator uses super rare earth permanent magnet or oxidized magnet as the magnetic source, which can save power consumption compared with the electromagnetic iron remover; Fine iron impurities, thus protecting the next sorting equipment and improving the purity of the material; Strong magnetic strength , the magnetic field strength of the magnetic rod with a diameter of 25mm can reach more than 10000 GS; The iron is convenient and quick, the cylinder is layer by layer. Pulling the magnetic rod, the magnetic substance adsorbed on the magnetic rod automatically falls off.

2.Operating Principle

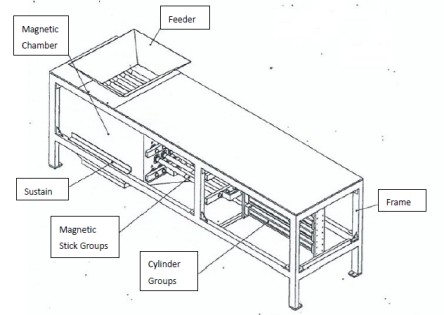

Mineral particles are fed from the feeding port of the Magnetic Drawer Type Separator and pass through the permanent magnetic rod in the magnetic rod box.

Magnetic substances in mineral particles are adsorbed on magnetic rods due to magnetic force

Non-magnetic mineral particles pass through the magnetic rod and are discharged from the discharge port

At the same time, the permanent magnet magnetic rod is pulled layer by layer through the cylinder device

The ferromagnetic substance adsorbed on the permanent magnet magnetic rod is automatically separated and dropped out of the iron removing port.

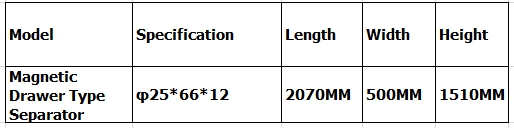

3. The Main Technical Parameters

4. Application Scope

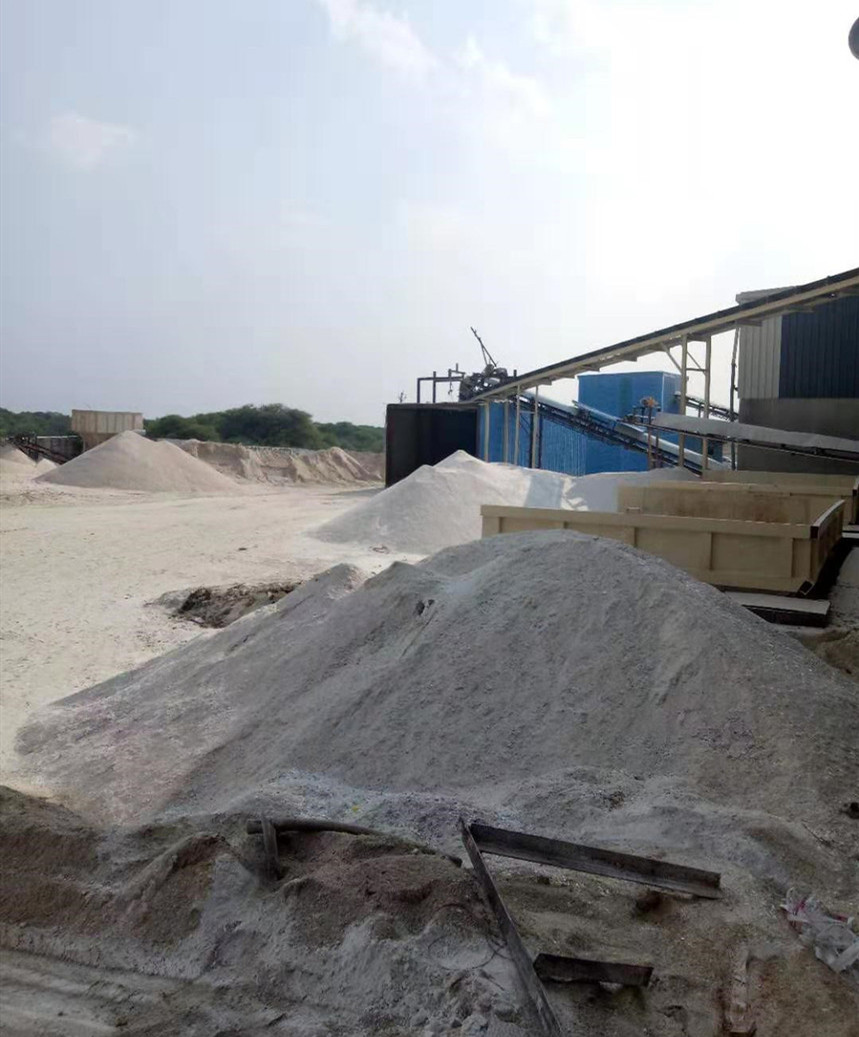

It is suitable for the purification and removal of non-metallic minerals such as ceramic raw materials, feldspar, quartz and kaolin.

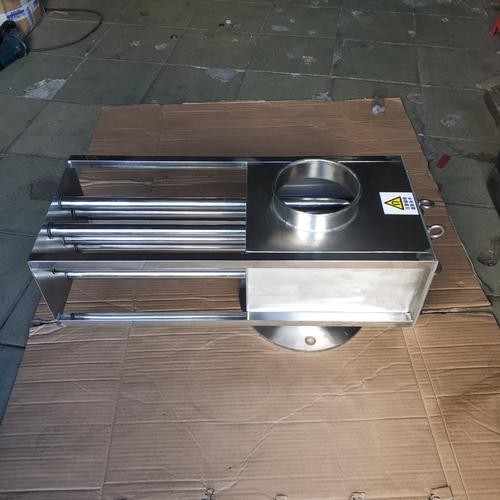

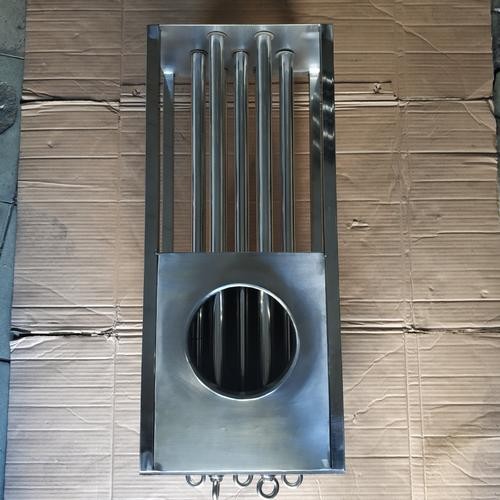

5. Deironing Box
