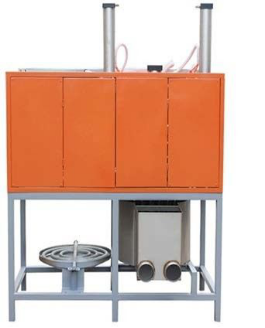

Magnetic Rod Slurry Separator

1.Product description

It has the advantages like high intensity magnetic and strong magnetic capacity. Uniform distribution, the density of soft magnetic medium can greatly improve the probility of capture of ferromagnetic impurities.

Slurry contained iron slowly pass through the magnetic field under resistance of dielectric materials, thus it can effectively remove strong magnetic impurities and weak magnetic materials from slurry and chieve the ideal effect of iron elimination.

Strong magnetic can absorb iron, eliminateiron completely, less water, the working medium can be taken out of for inspection and cleaning thus effectively avoid the effect of the intersection of differents slurry.

Automatic PLC control, elimination, automatic cleaning, the cleaning cycle and time can be adjusted, so it is high reliable, long using time.

2.Operating Principle

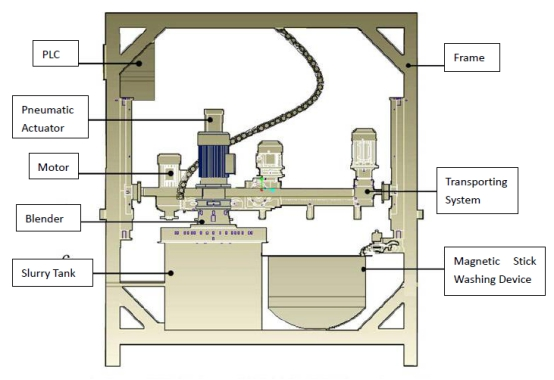

The Magnetic Rod Slurry Separator has iron removal components, which are respectively arranged in the slurry tank. Due to the strong magnetic field on the surface of the magnetic bar, the iron in the slurry is adsorbed on the surface of the magnetic bar The Magnetic Rod Slurry Separator is periodically lifted from the slurry tank by the magnetic rod lifting device, and the iron adsorbed on the surface of the magnetic rod is scraped off by the scrapping device installed on the upper part of the magnetic rod and put back into the slurry tank. The slurry flows into the Magnetic Rod Slurry Separator in the front equipment, and the equipment gradually removes the iron in the slurry according to the above-mentioned reciprocating operation, thus achieving the goal of purification.

3.The Main Technical Parameters

4.Application Scope

It is mainly used to remove ferromagnetic impurity from slurry and widely used in ceramics, chemical industry, environmmental protection, plastics, pharmacy, food, paint, dyes and other industries.
