Cyclone Dust Collector

1.Product description

Cyclone Dust Collector is a dust removal device that uses the centrifugal force generated by the rotating airflow to separate dust particles from the combined airflow. It has the advantages of simple structure, small size, no special auxiliary equipment, low cost, medium resistance, no moving parts in the device, convenient operation and maintenance, etc.

2.Operating Principle

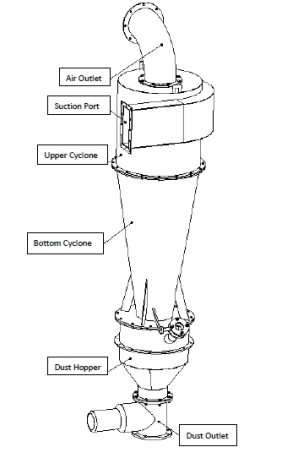

The working principle of the Cyclone Dust Separator with bypass is that the dust-containing gas enters the cyclone tangential from the inlet. While the air flow gets rotary movement, the air flow forms a double-spiral spiral movement separately up and down The coarse dust particles are separated from the down-spiral flow to the outer wall. Some of the dust is drawn from the central opening of the by-pass Separation Chamber and the remaining dust is carried by the down-spiral flow to the dust hopper. The up-swirl air has the aggregation function to the fine particle dust, thus enhances the dust removal efficiency. This part of fine dust particles, from the spiral air flow to the upper part, under the cover of the formation of a strong rotation of the upper dust ring, and with the spiral air flow into the bypass separation chamber upper hole After the return air inlet into the cone and the internal air flow confluence, the purified gas by the exhaust pipe exhaust, separated dust into the hopper.

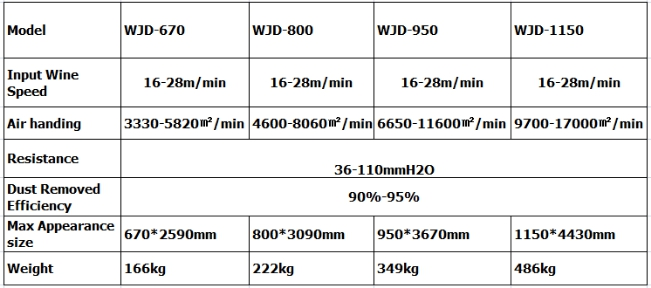

3.The Main Technical Parameters

4. Application Scope

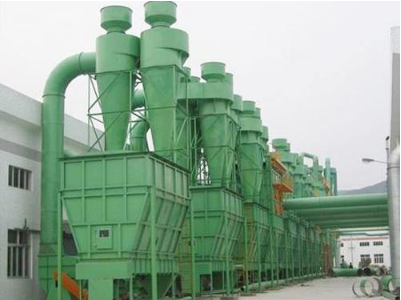

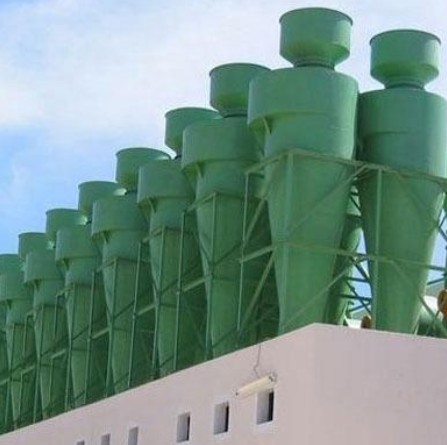

Cyclone Dust Collector is a commonly used facility in boilers and industrial production. Cyclone Dust Collector is generally used to capture particles above 5-15 microns. The dust removal efficiency can reach more than 80%. In recent years, the Cyclone Dust Collector has been improved. Its dust removal efficiency can reach more than 5%. The disadvantage of the Cyclone Dust Collector is that the efficiency of trapping particles smaller than 5 microns is not high. Not suitable for processing dust with higher viscosity, higher water content and more corrosive dust. Fluctuation of air flow has a greater impact on dust removal effect and equipment resistance.

5. Company profile

FOSHAN WANJIADE TECHNOLOGY COMPANY LIMITED has a number of invention and utility model patents, and the company has passed ISO9001 certification. Our company has unique professional technical team and sophisticated laboratories, which can customize iron removal equipment and various magnetic accessories, rolling screen, environmental dust removal equipment etc, products are widely used in ceramic raw material processing industry, for kaolin, feldspar, quartz, glaze, electronics, food, pharmaceutical. The raw material production workshop provides efficient iron removal, grading screening and dust cleaning equipment. the quality of the products is reliable and sold well both at home and abroad.

FOSHAN WANJIADE TECHNOLOGY COMPANY LIMITED provides customers with a full range of ceramic material production line

engineering consulting services, and has been used by many cutsomers

at home and abroad. Construction of production lines with good returns, including coarse crushing production line, feldspar deep processing production line., granite tailings, metal mine tailings, purification production line, kaolin purification whitening production line, dry grinding production line and quartz processing production line.

6.Product Service Commitment

1. The product is used under normal conditions, the warranty period is 5 years (excluding broken parts)

2. In the first year, spare parts caused by non-human factors were damaged and replaced free of charge. If the damage is caused by the violation of the operation, the cost of the spare parts will be recovered and labor costs will be waived.

3. From the second year onwards, the accessory fee will be charged, and the customer will be responsible for the travel expenses of the maintenance personal, free of labor costs.

4. To ensure that customers can understand the product structure, performance, characteristics, assist customers in the correct selection before the order, and provide on-site installation design.

5. The product price is reasonable, delivery on time, fast. Regular return visits, no fee for return visits.

6. If the equipment has problem during use, it can be repaired free of charge by phone or online. If customers need our technical to repair, in our own province, the technical will get to within 36 hours, if another province, then will arrive within 48 hours. As for the foreign country, the technical will arrives at the scence for a week or so to ensure the normal production of the customer. The customer need to responsible for the return ticket and accommodation of the maintenance personnel, and assist the visa.
