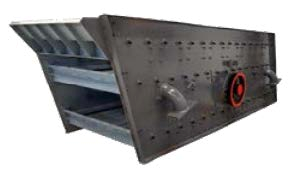

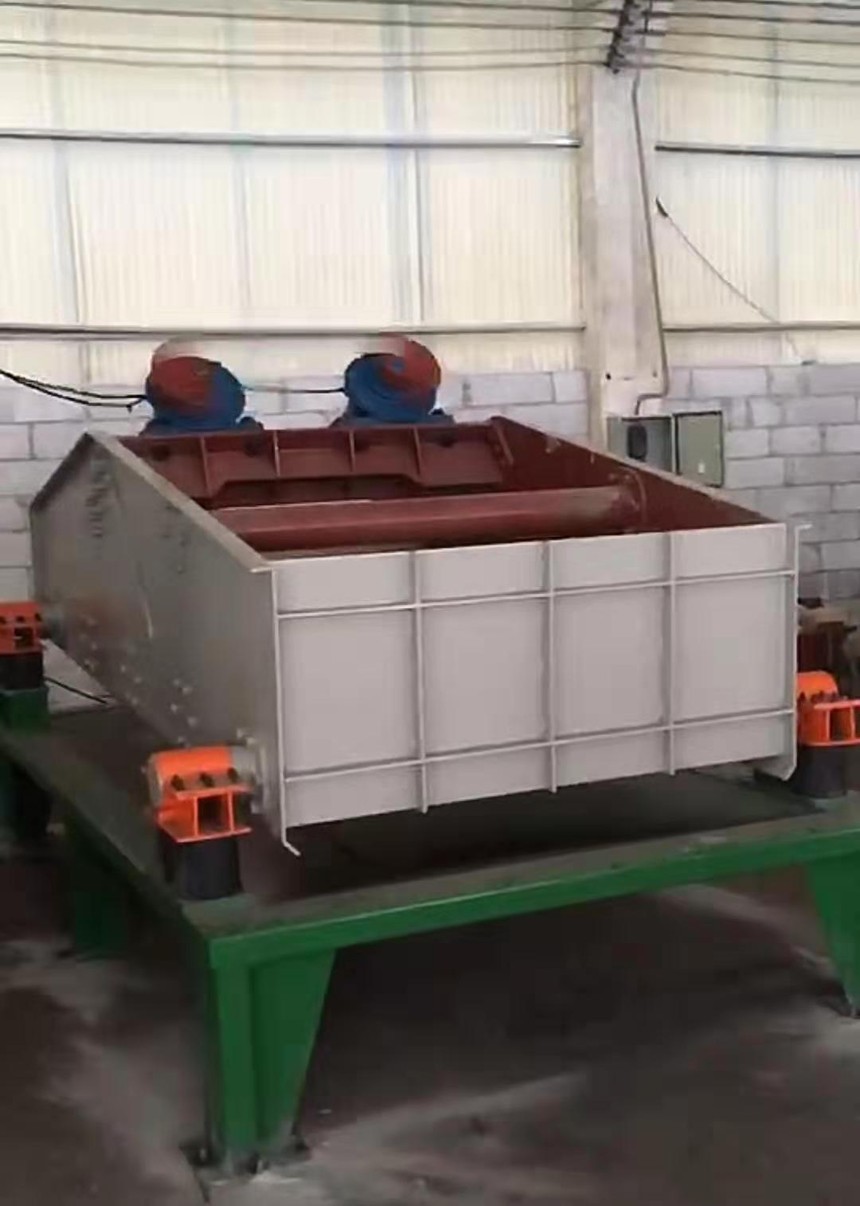

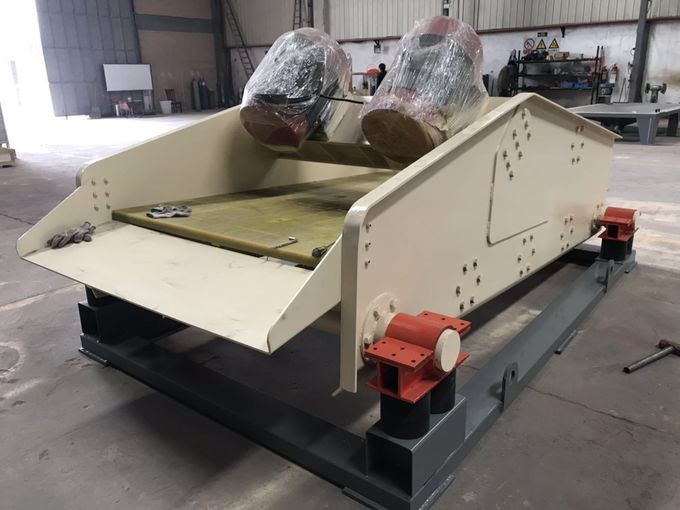

Vibrating Dehydrating Screen

1.Product description

The peoduct has the following advantages:

The Vibrating Dehydrating Screen adopts a polyurethane screen which has a longer life than other types of screens and does not block holes.

Effectively reduce the loss of fine sand, which can be controlled tetween 5% and 10%.

Different solutions can be designed according to different requirements of customers.

Reduce the fine material stcking time, can be directly transported, supply the market.

The fine sand is fully recovered, reducing the workload of the sedimentation tank and reducing the cleaning cost of the sedimentation tank.

Reasonable use of dehydrating screen can not only create higher economic value for you, but also respond to national green, environmental protection and high efficiency. The call for energy conservation. It can be said that it is a multi-purpose.

2.Operating Principle

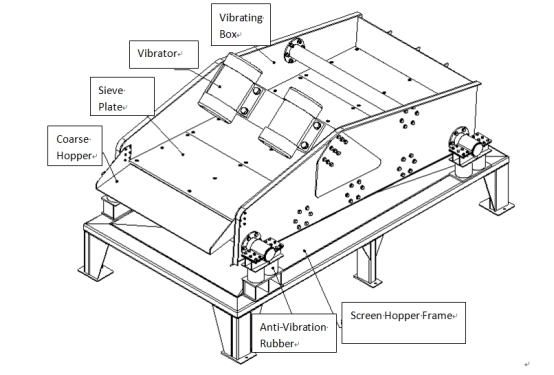

The Vibrating Dehydrating Screen adopts the self-synchronous technology of double motors, universal eccentric block and adjustable amplitude vibrator. It is mainly composed of screen box, vibration exciter, supporting system and motor. The Centrifugal force produced by the two groups of eccentric mass is superimposed along the component force of the vibration direction and counteracted by the reverse centrifugal force, thus forming a single excited vibration along the vibration direction Make the screen box move back and forth in a straight line.

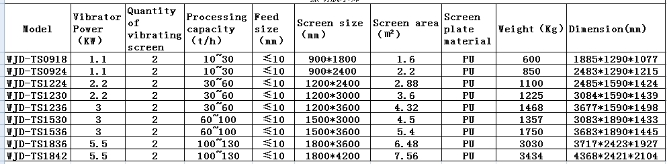

3. The Main Technical Parameters

4. Application Scope

Vibrating Dehydrating Screen, the main function is dehydration, desludege, de-intermediation, can be used for sand washing in sand and gravel plant, coal slurry recovery in coal preparation plant, dry discharge of tailings in mineral processing plant, etc., so it is also called Sand Stone Dewatering Sieve and Mining Dewatering Sieve, Slim Dewatering Screen, Tailings Dwatering Screen, etc.

The Vibrating Dehydrating Screen adopts double vibration motor or flange type vibration exciter (self-synchronous rotation by two ordinary motors to rotate in the opposite direction), so that the sieve body can be periodically reciprocated in a straight line direction to achieve the purpose of grading dehydration.

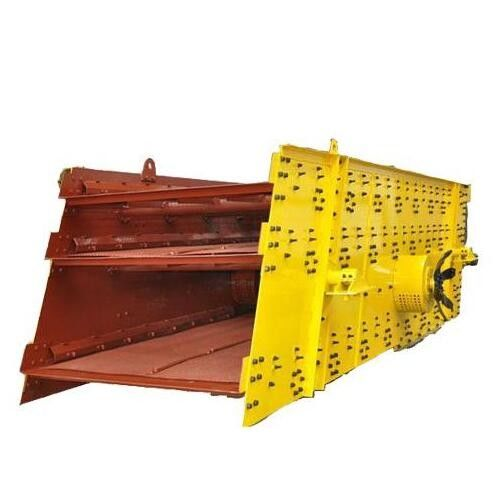

5.Linear Vibrating Screen

Product Advantages

Effectively reduce the loss of fine sand, which can be controlled between 5% and 10%.

Different solutions can be designed according to different requirements of customers.

Reduce the fine material stacking time, can be directly transported, supply the market.

The fine sand is fully recovered, reducing the workload of the sedimentation tank and reducing the cleaning screen cost of the sedimentation tank.

Reasonable use of respond to national green, environmental protection and high efficiency. The call of energy conservation. It can be said that it is a multi-purpose.
