Rolling Type Vibration Filter

1.Product description

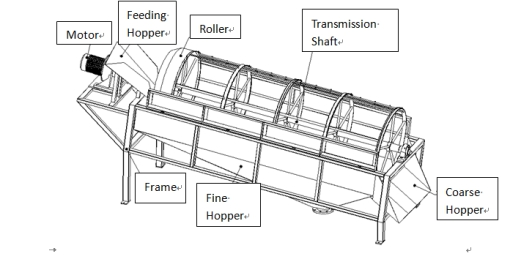

Rolling Type Vibration Filter is a kind of machinery widely used in separation technology. It controls the separation of garbage by controlling the particle size and has high separation accuracy. The cylinder of the drum screen is generally divided into several sections, depending on the specific situation. The sieve holes are arranged from small to large, and the sieve holes have the same diameter. The drum screen mainly consists of motor, reducer, drum device, frame, sealing cover and inlet and outlet opening.

2.Operating Principle

The working principle of the Rooling Type Vibration Filter is that the motor drives the roller which is installed on the rack obliquely to rotate around its axis through the speed reducer and coupling While the material on the screen surface is constantly turning and rolling, it is separated from the top to the bottom through a grading screen Mesh. Due to the different screen mesh specifications, the material is gradually separated and sieved, and the material with qualified particle size (sieved bottom material) is sieved and then falls into the respective hopper The unqualified material (the material on the screen) is discharged through the discharge opening at the tail of the roller, and the material stuck in the screen hole can be ejected because of the material's turning and rolling in the roller, thus preventing the screen hole from clogging.

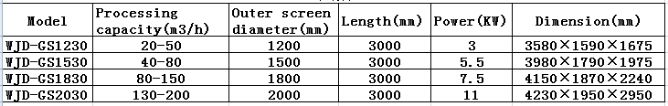

3.The Main Technical Parameters

4.Features；

Special screen construction easy and fast for changing the mesh (only need 5 to 10 minutes) the using life also will be more longer.

Special screen construction easy and fast for operating.

The effective screen is more bigger the performance is more better.

Using life is longer save more product cost for the factory.

5. Application Scope

This machine is suitable for sieving quickly any powder grain liquid in ceramic milling mineral print industries. The sieving work can be continuous unanimous products standard can be got through the working.

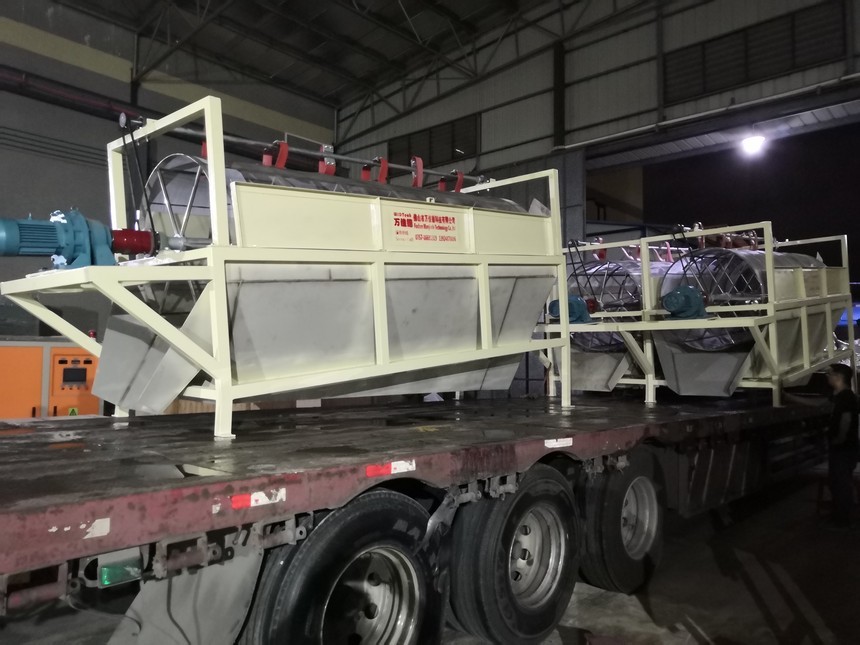

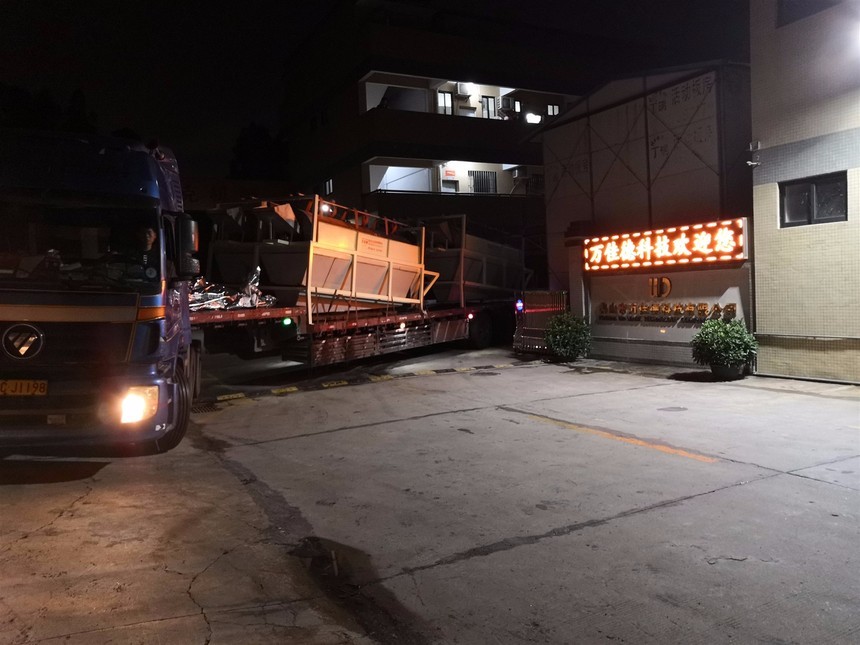

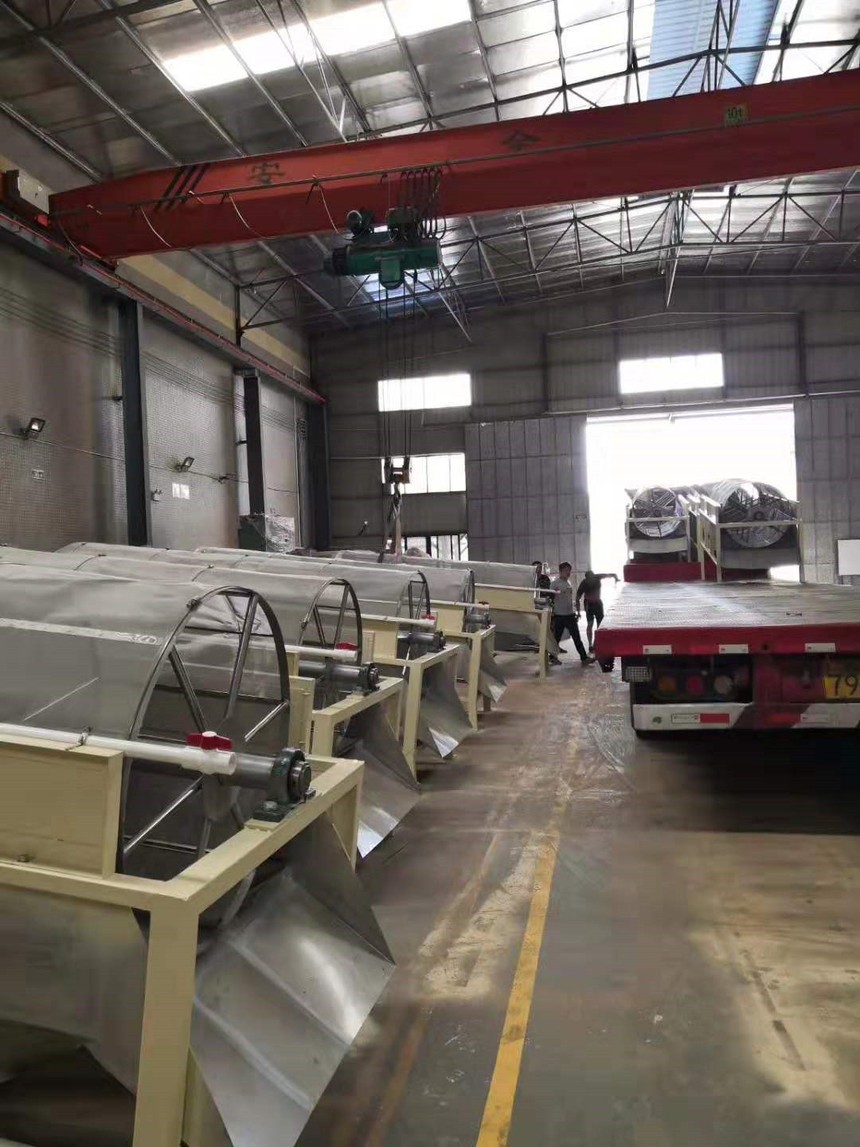

6. Shipping
